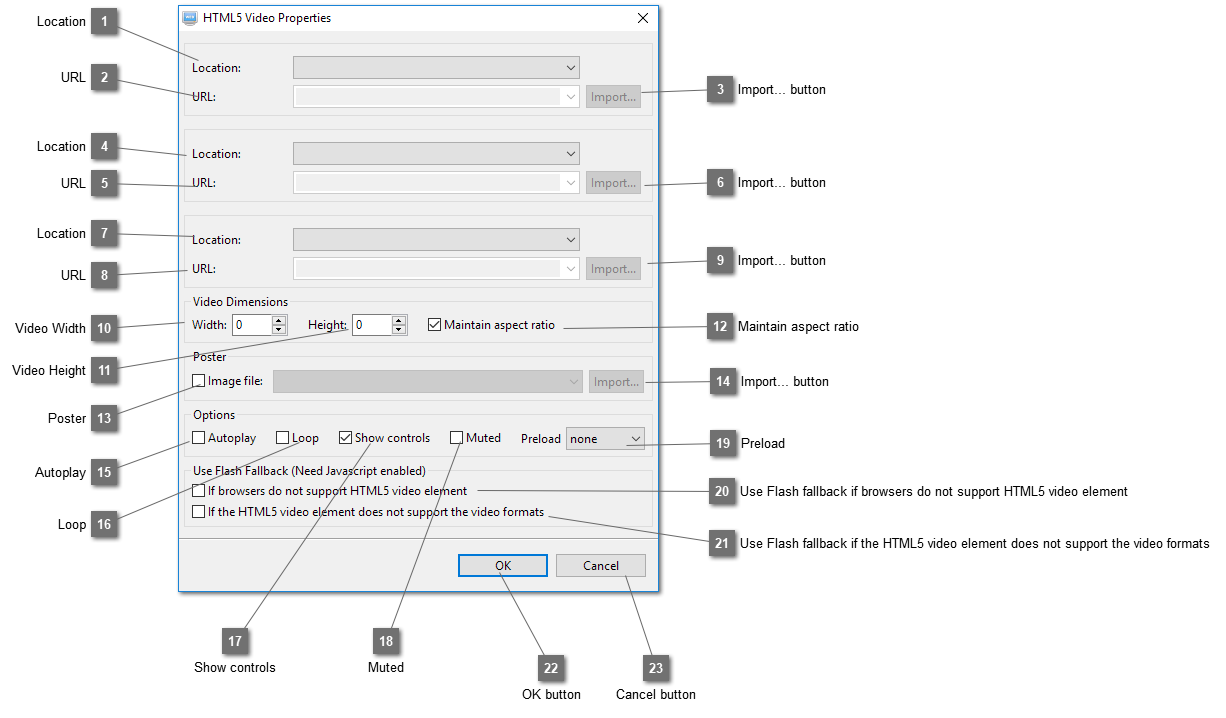

HTML5 Video Properties Dialog

HTML5 Video Properties Dialog
1

Location

1. Location
Select the location of the video file.
2

URL

2. URL
Select the video file within this website or enter the URL of a remote video file from another website. Supported formats are mp4, webm and ogg. If Flash fallback is selected, it can play flv files.
3

Import... button

3. Import... button
If file location is "A media file in this website", you can click on the Import button to import an external video file on your computer to this website.
4

Location

4. Location
Select the location of the video file.
5

URL

5. URL
Select the video file within this website or enter the URL of a remote video file from another website.  This should be the same as the first one but in different format. Browsers will pick the one that they support. Supported formats are mp4, webm and ogg. If Flash fallback is selected, it can play flv files.
6

Import... button

6. Import... button
If file location is "A media file in this website", you can click on the Import button to import an external video file on your computer to this website.
7

Location

7. Location
Select the location of the video file.
8

URL

8. URL
Select the video file within this website or enter the URL of a remote video file from another website.  This should be the same as the first one but in different format. Browsers will pick the one that they support. Supported formats are mp4, webm and ogg. If Flash fallback is selected, it can play flv files.
9

Import... button

9. Import... button
If file location is "A media file in this website", you can click on the Import button to import an external video file on your computer to this website.
10

Video Width

10. Video Width
The width of the video file.
11

Video Height

11. Video Height
The height of the video file.
12

Maintain aspect ratio

12. Maintain aspect ratio
If this option is selected, changing the width of the video will causes height to be changed in aspect ratio and vice versa.
13

Poster

13. Poster
Select this option to show a selected image on the HTML5 Video element before the video is played.

14

Import... button

14. Import... button
Import an external image file from your computer to this website.
15

Autoplay

15. Autoplay
Select this option to play the video automatically when it is loaded.
16

Loop

16. Loop
Select this option to play the same video repeatedly.
17

Show controls

17. Show controls
Show the control panel of the element.
18

Muted

18. Muted
Mute the audio of the video by default.
19

Preload

19. Preload
 It may have one of the following values:
  •  none: indicates that the video should not be preloaded.
  •  metadata: indicates that only video metadata (e.g. length) is fetched.
  •  auto: indicates that the whole video file could be downloaded, even if the user is not expected to use it.
20

Use Flash fallback if browsers do not support HTML5 video element

20. Use Flash fallback if browsers do not support HTML5 video element
Select this option to use Flash fallback if it is installed when HTML5 Video Element is not supported in the browser. This option needs Javascript to be enabled.
21

Use Flash fallback if the HTML5 video element does not support the video formats

21. Use Flash fallback if the HTML5 video element does not support the video formats
Select this option to use Flash fallback if it is installed when the video format is not supported by the HTML5 Video Element but can be played using Flash player. This option needs Javascript to be enabled.

22

OK button

22. OK button
Click on this button to insert the video element.
23

Cancel button

23. Cancel button
Click on this button to cancel the insertion.
