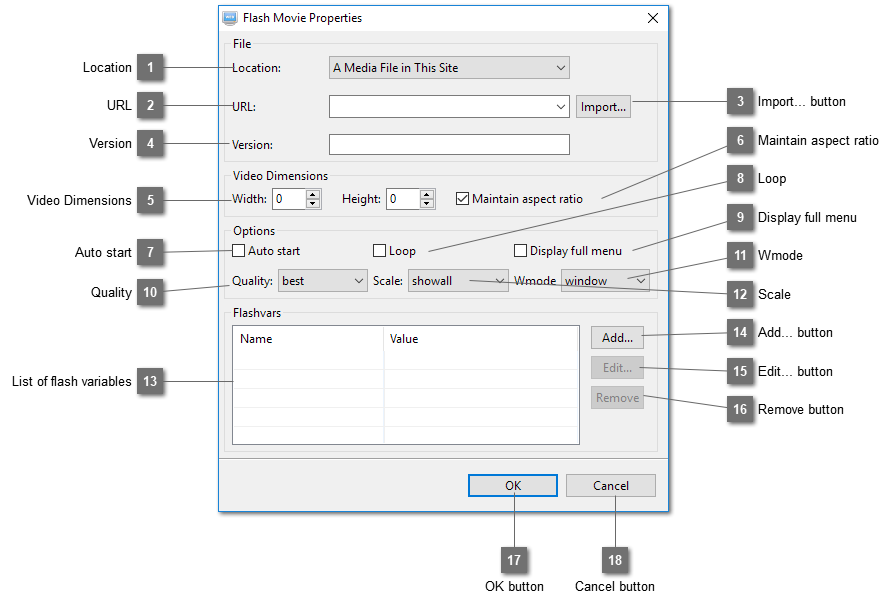

Flash Movie Properties Dialog

Flash Movie Properties Dialog
1

Location

1. Location
Select the location of the flash movie (SWF).
2

URL

2. URL
Select the flash movie (SWF).
3

Import... button

3. Import... button
Import an external flash movie to this website.
4

Version

4. Version
Show the version of this flash movie.
5

Video Dimensions

5. Video Dimensions
Show the dimensions of this flash movie. They are obtained from the swf file. If the size detected is over 750x750, the width and the height will be adjusted to fit in this size.
6

Maintain aspect ratio

6. Maintain aspect ratio
Keep the ratio between width and height when resizing.
7

Auto start

7. Auto start
Select this option to start the movie automatically after the page is loaded.
8

Loop

8. Loop
Select this option to repeatedly play the movie.
9

Display full menu

9. Display full menu
Select this option to display the full context menu of Flash Player.
10

Quality

10. Quality
Select the quality of the movie when playing.
11

Wmode

11. Wmode
Select the Wmode for the flash movie. Use the WMODE parameter to allow layering of Flash content with DHTML layers. The WMODE parameter can be 'window', 'opaque', or 'transparent'. Using a WMODE value of 'opaque' or 'transparent' will prevent a Flash movie from playing in the topmost layer and allow you to adjust the layering of the movie within other layers of the HTML document.
(Refer: http://kb2.adobe.com/cps/155/tn_15523.html )
12

Scale

12. Scale
Select the scale for the flash movie.

Show All
This setting renders the entire movie visible, while retaining the original aspect ratio of the movie. Because of this, the movie will not be distorted, because the proportions are constrained. Borders may be present on the two sides of the movie if the browser window's dimensions do not match the stage size's ratio.
No Border
This setting scales the movie in order to fit within the specified area, to ensure that no borders will appear. The movie maintains it's original aspect ratio. No distortion will occur, but the sides of the movie may be cropped off.
Exact Fit
This setting ensures that the entire movie will be visible within the specified area. Because the movie is scaled to fit at a ratio that may not reflect the original file, distortion of the movie may occur.
Refer: http://kb2.adobe.com/cps/141/tn_14149.html
13

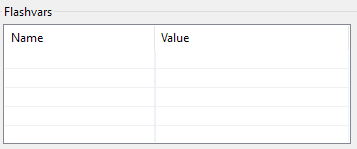

List of flash variables

13. List of flash variables
Show a list of added flash variables.
14

Add... button

14. Add... button
Add a new flash variable to the list.
15

Edit... button

15. Edit... button
Edit the selected flash variable.
16

Remove button

16. Remove button
Remove the selected flash variable.
17

OK button

17. OK button
Click OK to save the settings.
18

Cancel button

18. Cancel button
Cancel saving the settings.
