Move the selected element to the bottom of the other elements on the same page. Please note that it is still above all elements in the template page except a navigation bar. Navigation bar in the template page is always the top element of the page.
Move the selected element to the top of another element which is immediately above it. For example, the selected element has two other elements above it. Click this button once. The selected element will now be in the middle of the other two elements. Click once again and it will be the top element of the three. If there are no elements above it, it will become the top element of the page.
Move the selected element to the bottom of another element that is immediately below it. For example, the selected element has two elements below it. Click the button once, the selected element is now under the element immediately below it but above the third element from the top before the button is clicked. Click once again will make the selected element at the bottom of the three. If there are no elements underneath, the selected element will be at the bottom of the other elements on the same page.
Align the selected elements using the spacing predefined in the drop down menu as shown below or choosing custom to set it in the Align to Grid Dialog. The predefined spacing can be set under the preference item Align to Grid.

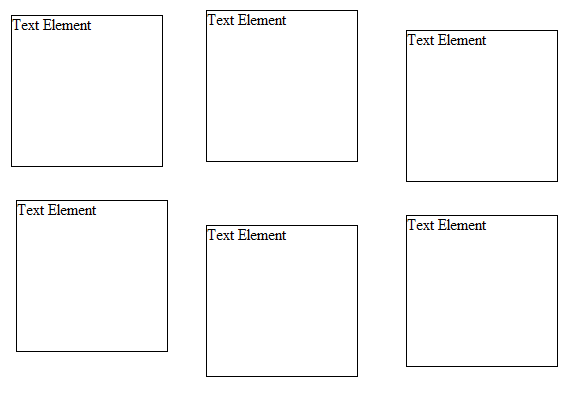

The example below shows how to use this function. Suppose we have six text elements added on a page like the following.

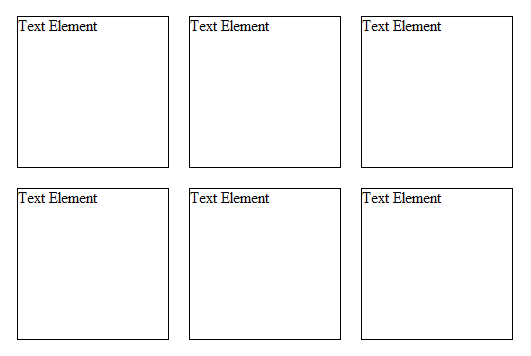

Though we can align them manually one by one, using this function will make the task more easier. Selecting all the elements above and apply this function by selecting "20" from the drop down menu. They will be aligned as follows:
