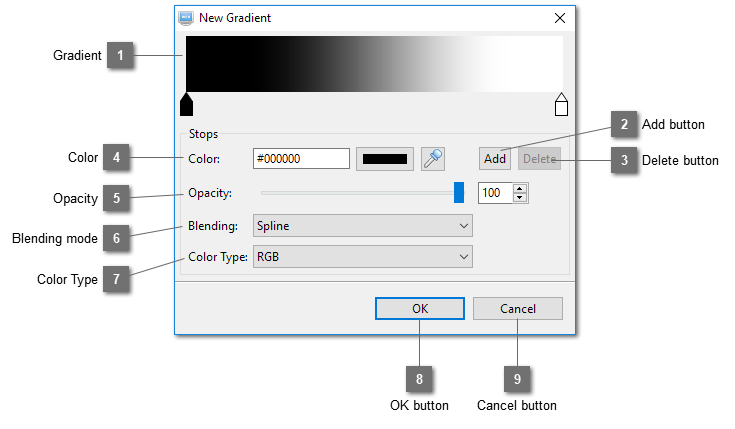

New Gradient Dialog

New Gradient Dialog
1

Gradient

1. Gradient
Display the gradient and the color stops. Click on a color stop to change the settings. Drag the color stop to a new location. Please note that the first and the last color stops cannot be moved.
2

Add button

2. Add button
Add a new color stop between the selected color stop and the next color stop. You can also double click on the gradient to create a new stop.
3

Delete button

3. Delete button
Click the Delete button to delete the selected color stop. You can also remove the selected color stop by pressing the Delete Key.
4

Color

4. Color
Set the color of the selected color stop.
5

Opacity

5. Opacity
Set the opacity of the color.
6

Blending mode

6. Blending mode
Select the blending mode which is used to combine the color of the selected color stop and the color of the next color stop.
7

Color Type

7. Color Type
Select the color type of the color.
8

OK button

8. OK button
Click OK to add this gradient.
9

Cancel button

9. Cancel button
Cancel adding this gradient.
