Color Analyzer Dialog

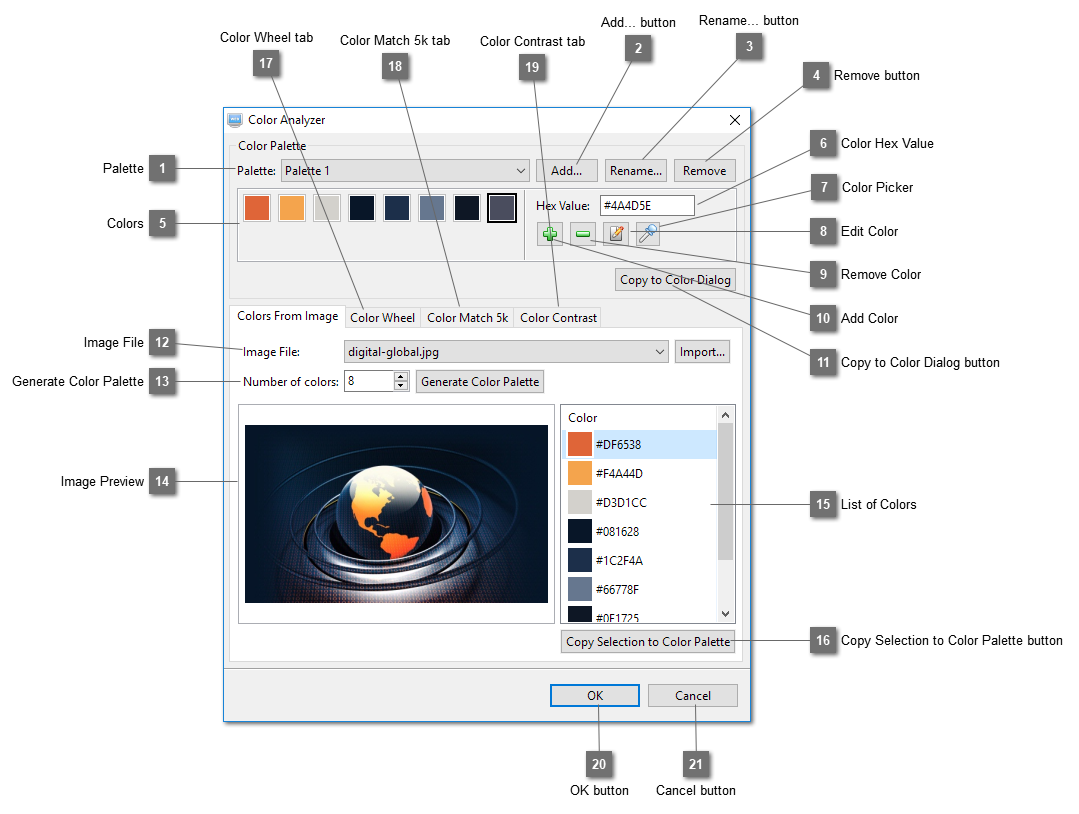

Color Analyzer Dialog

The Color Analyzer is used to create a color palette for use with a website. The colors generated from an image file or from the color wheel can be stored in the custom colors of the System Color Dialog.
1

Palette

1. Palette
Select a palette. A palette is a set of colors that are stored together It serves as a central place to record which colors are used in a website.
2

Add... button

2. Add... button
Add a new palette.
3

Rename... button

3. Rename... button
Rename the selected palette.
4

Remove button

4. Remove button
Remove the selected palette.
5

Colors

5. Colors
Show the colors of the selected palette.
6

Color Hex Value

6. Color Hex Value
Show the hex value of the selected color. The selected color can be changed by directly entering the hex value to the text box.
7

Color Picker

7. Color Picker
Use this color picker to change the selected color.
8

Edit Color

8. Edit Color
Open the System Color Dialog to change the selected color.
9

Remove Color

9. Remove Color
Remove the selected color from the palette.
10

Add Color

10. Add Color
Add a new color to the palette. The maximum number of colors for each palette is 16.
11

Copy to Color Dialog button

11. Copy to Color Dialog button
Copy the colors from the selected palette to the custom colors of the System Color Dialog.
12

Image File

12. Image File
Select the image file from the website to generate colors. External image file can be imported into the website to generate colors.
13

Generate Color Palette

13. Generate Color Palette
Select the number of colors to be generated from the image and click "Generate Color Palette" to generate colors.
14

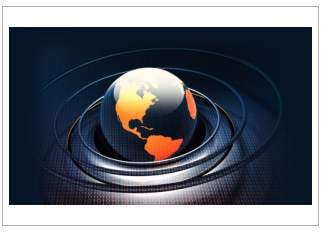

Image Preview

14. Image Preview
Show the image that is used to generate colors.
15

List of Colors

15. List of Colors
Show the colors that are generated from the image.
16

Copy Selection to Color Palette button

16. Copy Selection to Color Palette button
Select the colors from the list and click this button to copy the colors to the palette. The selected colors can also be dragged to the palette.
17

Color Wheel tab

17. Color Wheel tab
18

Color Contrast tab

18. Color Contrast tab
19

OK button

19. OK button
Click OK to save the palettes.
20

Cancel button

20. Cancel button
Cancel all changes and close this dialog without saving the palettes.
